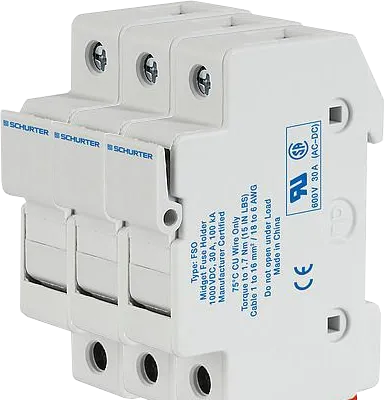

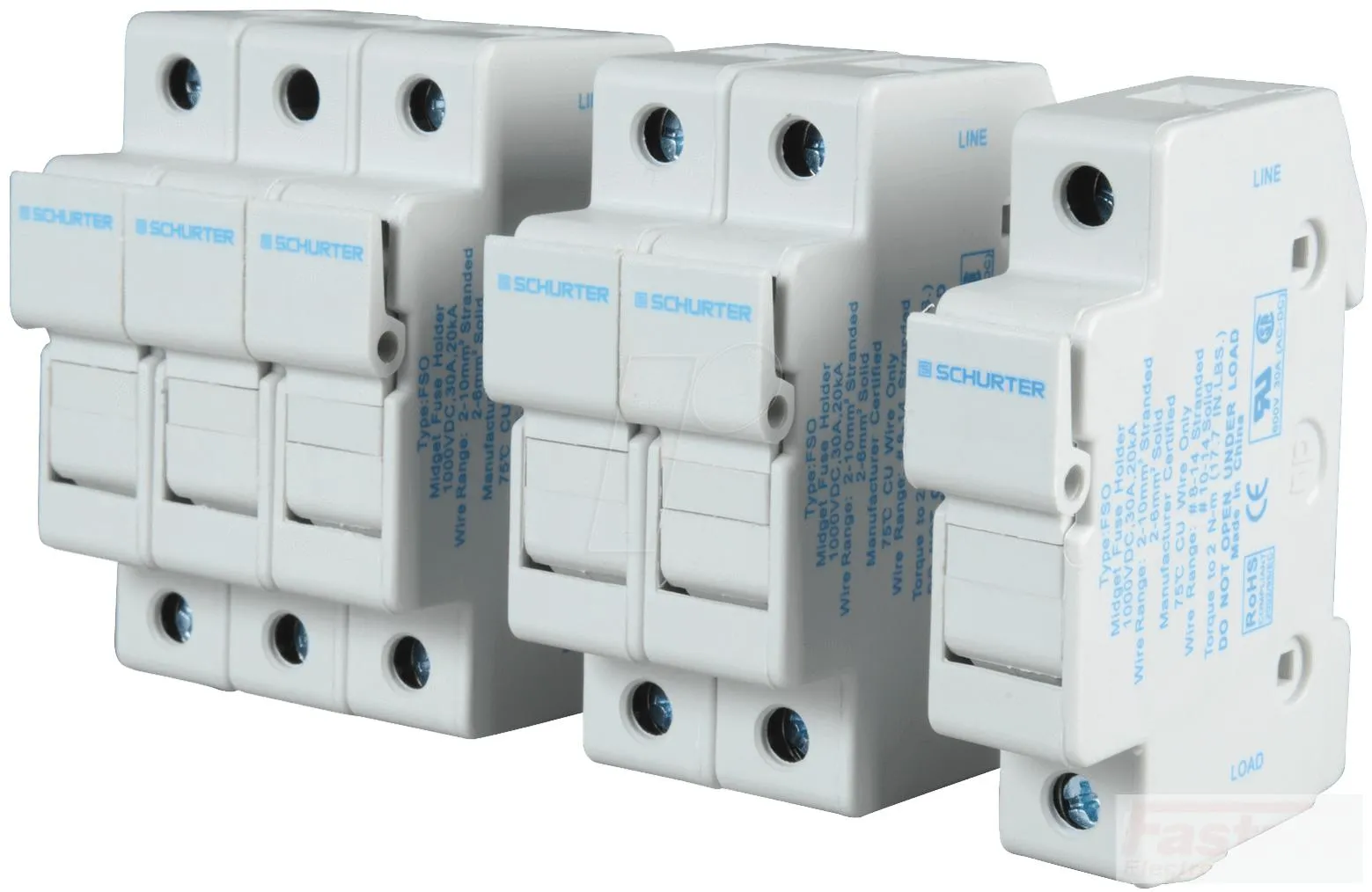

Schurter 0091.0003, FSO DIN Rail Mount Fuse Holder 3 Pole for 10.3 x 38mm, 1000VDC Solar PV Fuse (ASO Series)
Features
- Mountable on 35mm DIN Rail
- Easy installation and replacement of fuses
- Fuses up to 100 kA breaking capacity
Applications
- Combiner Boxes in Photovoltaic Systems
Specification
| Schurter Part Number | 0091.0003 |
| Nominal Voltage | 1000VDC |
| Tested Breaking Capacity | 100kA @1000VDC |

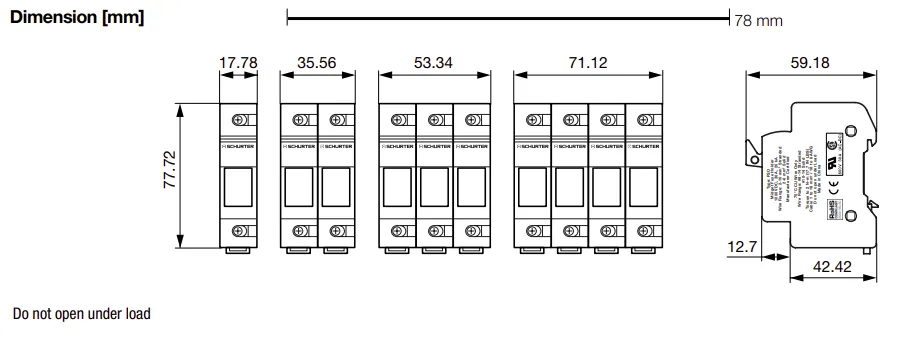

| Fuse Holder Dimensions | 53.34 x 77.72mm |
| Fuse Dimensions | 10.3 x 38mm |
| Suitable Fuses | ASO, AEO, PV10 |
| Operating Temperature Range | -40°C / 130°C |
| Unit Weight | 170g |
| Factory Pack Qty | 10 |
